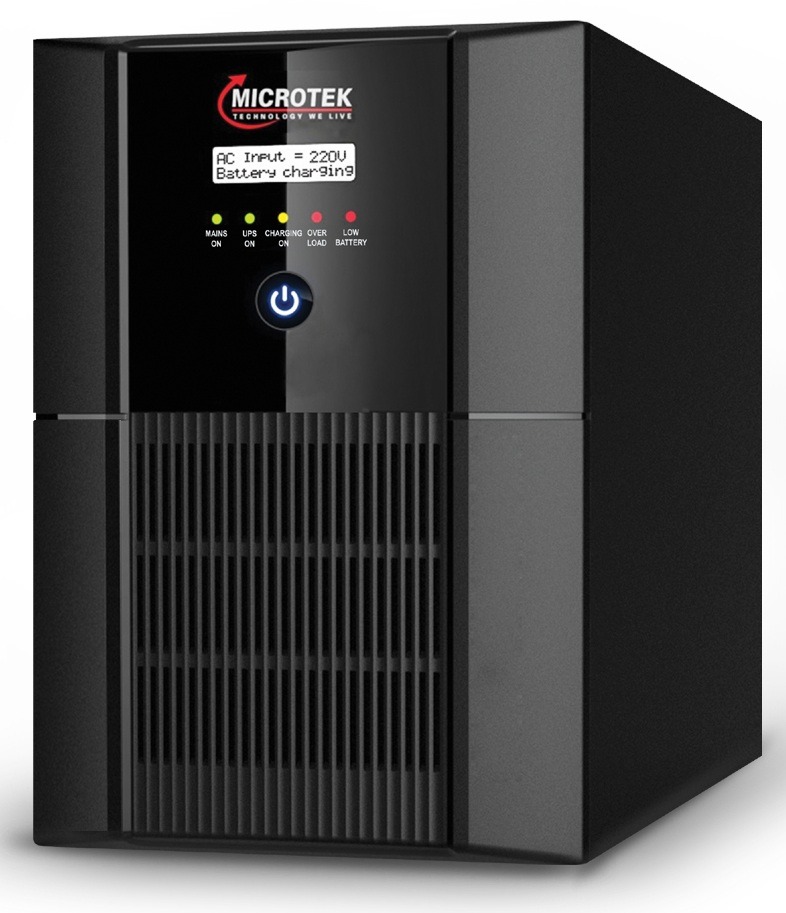

The Microtek JM SW 3500+/24V is designed for users who need a powerful 24V backup system for running multiple compatible electrical and electronic appliances. It offers a rated capacity of 2.8 kVA / 2240 W according to Microtek's current product specifications. Its Pure Sine Wave output in UPS mode makes it suitable for a wide range of home and office loads.
With automatic switching between mains and UPS mode, the inverter helps maintain power continuity when the electricity supply fails. The 24V battery configuration uses a compatible two-battery setup, making it a practical choice for higher-capacity backup requirements.
Key Features of Microtek Jumbo New 3500+ 24V SW
2.8 kVA / 2240 W capacity for high-capacity power backup
24V battery system for compatible two-battery configurations
Pure Sine Wave output in UPS mode
DSP-based Smart Control Design for efficient power management
Wide standard input voltage range of 100V–280V
Automatic mains-to-UPS and UPS-to-mains switching
Maximum charging current of approximately 20A + 3A
Boost-based PWM-controlled multi-stage battery charging
Generator compatible
LCD/LED indications for load, battery and fault status
Auto Reset feature
Integrated fan and heat-sink cooling
Protection against overload, short circuit, low battery, wiring faults, reverse phase and reverse battery conditions.
Pure Sine Wave Backup for Home & Office
The Pure Sine Wave output of the Microtek Jumbo New 3500+ 24V SW provides smooth and stable backup power for compatible appliances and electronic equipment. It can be considered for homes and offices where reliable backup is required for lighting, fans, computers, refrigerators, entertainment equipment and other appropriately calculated loads.
Its high-capacity design also makes it suitable for applications where a conventional low-capacity inverter may not provide sufficient backup power.
Microtek Jumbo New 3500+ 24V SW Specifications
Specification Details
Model Microtek JM SW 3500+/24V
Capacity 2.8 kVA
Working Power 2240 W
Battery Voltage 24V
Standard Input Voltage 100V–280V
Narrow Input Voltage 180V–260V
UPS Output Voltage 220V ±10%
UPS Output Frequency 50Hz ±0.5Hz
Backup Waveform Pure Sine Wave
Battery Charging Current Max. 20A + 3A
Switching Automatic Mains/UPS
Technology DSP-Based Smart Control
Efficiency >80%
Cooling Fan + Heat Sink
Operating Temperature 0°C–45°C
Dimensions 514 × 339 × 460 mm
Weight Approximately 23.9 kg
Specifications are based primarily on Microtek's current product listing; actual configuration and specifications should be confirmed before purchase.
Why Buy Microtek Jumbo New 3500+ 24V SW from Mahendra Power Zone?
Mahendra Power Zone provides power-backup solutions in Nagpur and offers the Microtek Jumbo New 3500+ 24V SW for customers looking for a high-capacity inverter solution. The product is suitable for residential, office, shop, and other compatible applications where dependable backup power is important.
For the right inverter and battery combination, customers should calculate their total connected load and required backup duration before purchasing. The team at Mahendra Power Zone can help customers select a suitable power-backup configuration based on their requirements.
