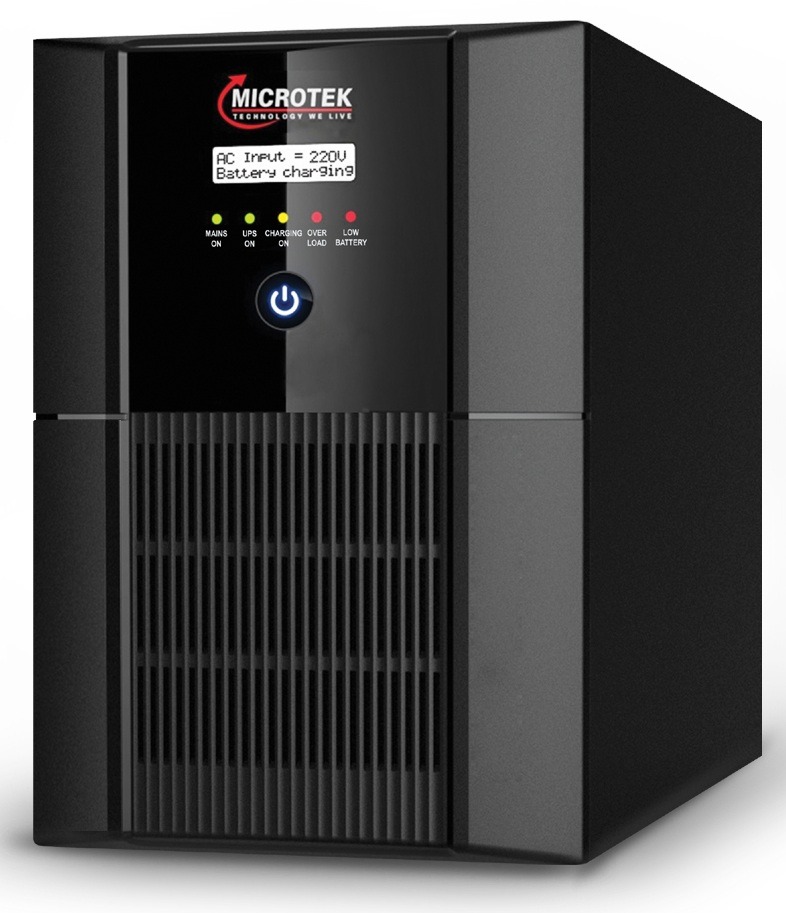

The Microtek Jumbo New 3000 24V SW is a high-capacity pure sine wave home UPS designed to provide reliable and efficient power backup for homes, offices, and other demanding applications. The JM SW 3000+/24V offers a 2.5 kVA capacity with 2000W working power and operates on a 24V battery configuration.
At Mahendra Power Zone, we provide genuine Microtek power backup solutions along with expert guidance to help you choose the right inverter and battery combination for your power requirements.
Key Features of Microtek Jumbo New 3000 24V SW
2.5 kVA / 2000W working capacity
24V battery voltage
Pure sine wave output in UPS/backup mode
DSP-based smart control technology
Advanced PWM technology using MOSFET
Wide standard input voltage range of 100V to 280V
Automatic switching between mains and UPS mode
Generator compatible
Boost-based PWM-controlled multi-stage battery charging
Maximum charging current of approximately 20A + 3A
Automatic reset feature
LCD/LED status and fault indication
Overload and short-circuit protection
Low-battery and reverse-battery protection
Wiring-fault and reverse-phase protection
Integrated cooling with fan and heat sink
Pure Sine Wave Power for Sensitive Appliances
The Microtek Jumbo New 3000 24V SW produces pure sine wave output during backup operation, making it suitable for a wide range of household, office, computer and other electronic loads. Its pure sine wave technology helps provide stable backup power for compatible appliances and equipment.
High-Capacity 2000W Power Backup
With a rated capacity of 2.5 kVA / 2000W, this Microtek Jumbo UPS is designed for users who need more power than a conventional home inverter can provide. It can be considered for larger household loads, offices, computer systems and other applications, subject to the actual connected load and battery configuration.
Advanced DSP-Based Technology
The JM SW 3000+/24V uses DSP/high-end microcontroller-based PWM technology and Microtek's ACEC technology for pure sine wave generation. The system also includes intelligent multi-stage battery charging technology to support efficient battery management.
Wide Input Voltage Range
The Microtek Jumbo New 3000 24V SW supports a standard input voltage range of 100V–280V, helping it handle variations in mains voltage. This makes it a practical power backup option for locations where voltage fluctuations are common.
Generator Compatible UPS
The Microtek Jumbo New 3000+/24V is generator compatible, providing greater flexibility for homes, offices and commercial applications that use generator backup alongside mains electricity.
Battery Configuration
Because this is a 24V UPS system, the compatible battery arrangement should be selected according to Microtek's specifications and the required backup duration. Battery capacity has a direct impact on backup time, so customers should consult Mahendra Power Zone before purchasing the battery combination.
Microtek Jumbo New 3000 24V SW Specifications
Specification Details
Model JM SW 3000+/24V
Capacity 2.5 kVA
Working Power 2000W
Battery Voltage 24V system
Backup Output Pure Sine Wave
Standard Input Voltage 100V–280V
UPS Output Voltage 220V ±10%
UPS Frequency 50Hz ±0.5Hz
Maximum Charging Current 20A + 3A
Technology DSP-Based Smart Control
Charging Technology Boost-Based PWM Multi-Stage Charging
Generator Compatible Yes
Protection Overload, Short Circuit, Low Battery, Reverse Battery, Wiring Fault and Reverse Phase
Cooling Integrated Fan & Heat Sink
Display LCD/LED Indicator
Dimensions 514 × 339 × 460 mm
Weight Approximately 23.7 kg
