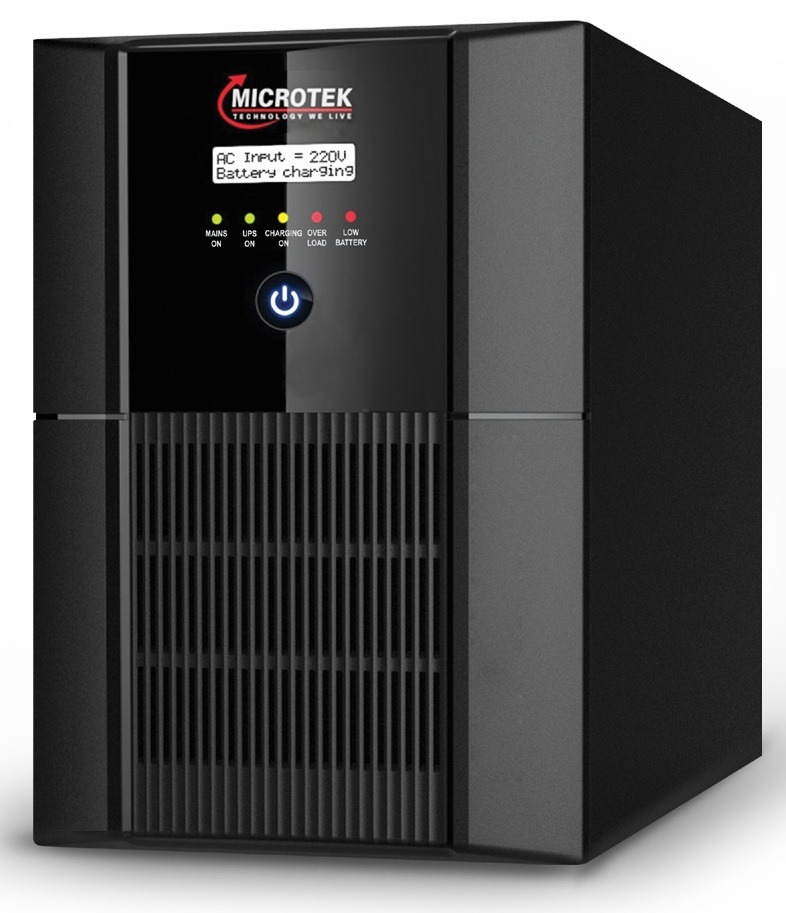

Looking for a reliable high-capacity UPS for your home, office, shop, or business? Microtek UPS JM SW 2750+/24V is a powerful Jumbo Home UPS designed to provide dependable power backup for demanding electrical and electronic loads. With a 2.2 kVA / 1760 W capacity, pure sine-wave output, intelligent DSP-based technology, and advanced battery management, this UPS is designed for stable and efficient backup performance.
Why Choose Microtek JM SW 2750+/24V?
The Microtek JM SW 2750+/24V combines high-capacity power backup with intelligent control and multiple safety features. Its pure sine-wave output in UPS mode makes it suitable for sensitive electronic equipment, computers, office systems, and other applications that require clean and stable power.
The UPS features DSP/high-end microcontroller-based PWM technology using MOSFETs, along with ACEC technology for pure sine-wave generation. Its intelligent multi-stage battery charging system is designed to support efficient charging and longer battery life.
Key Features
2.2 kVA / 1760 W power capacity
24V battery system
Pure sine-wave output in UPS mode
DSP-based intelligent control technology
PWM technology using MOSFET
Intelligent multi-stage battery charging
Maximum charging current of up to 20A + 3A
Wide standard input voltage range of 100V–280V
Generator compatible
LCD/LED display for load, battery and fault indications
Automatic mains-to-UPS and UPS-to-mains switching
Peak Load Peak Output (PLPO) for high load handling
Protection against overload, short circuit, low battery, wiring fault, reverse phase and reverse battery
Suitable for home and small-office applications
Technical Specifications
Specification Details
Model Microtek JM SW 2750+/24V
Capacity 2.2 kVA / 1760 W
Battery Voltage 24V
Standard Input Voltage 100V–280V
Narrow Input Voltage 180V–260V
UPS Output Voltage 220V ±10%
UPS Output Frequency 50Hz ±0.5Hz
Backup Output Pure Sine Wave
Maximum Charging Current 20A + 3A
Technology DSP-Based Smart Control
Efficiency >80%
Switching Automatic
Display LCD/LED
Generator Compatible Yes
Dimensions 514 × 339 × 460 mm
Weight 23.8 kg
