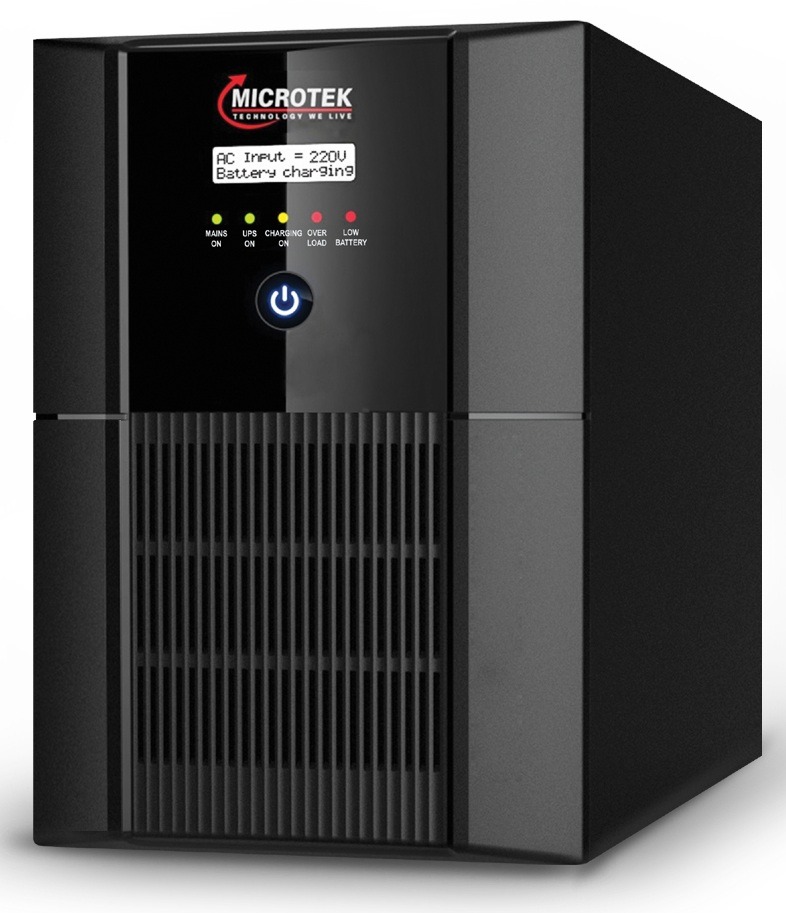

Looking for a powerful and reliable inverter for your home, office, or commercial setup? The Microtek UPS JM SW 3000+ 24V is a high-capacity Jumbo Home UPS designed to provide efficient and stable power backup for demanding applications. With a 2.5KVA / 2000W capacity, 24V battery configuration, DSP-based intelligent control, and pure sine wave output in UPS mode, it is suitable for a wide range of electrical and electronic loads.
At Mahendra Power Zone, you can get the Microtek JM SW 3000+ 24V along with expert guidance for selecting the right battery and power-backup configuration for your requirements.
Key Features of Microtek JM SW 3000+ 24V
2.5KVA / 2000W working capacity for high-capacity power backup
24V DC battery system
Pure sine wave output in UPS mode
DSP/high-end microcontroller-based PWM technology
MOSFET-based design for efficient operation
ACEC technology for pure sine wave generation
Boost-based PWM-controlled multi-stage battery charging
Supports Tubular, Standard and Local battery selection
Generator compatible
Automatic switching between mains and UPS operation
Smart protection against overload, short circuit, low battery, reverse battery and wiring faults
LCD/LED indicators for monitoring UPS status, load and battery conditions
Designed for home and small-office applications
Microtek JM SW 3000+ 24V Specifications
Specification Details
Model Microtek JM SW 3000+/24V
Capacity 2.5KVA / 2000W
Battery Voltage 24V DC
Standard Input Voltage 100V–280V
Narrow Input Voltage 180V–260V
UPS Output Voltage 220V ±10%
UPS Output Frequency 50Hz ±0.5Hz
Output Waveform in Backup Pure Sine Wave
Maximum Charging Current 20A + 3A
Technology DSP-Based Smart Control
Efficiency >80%
Auto Reset Yes
Generator Compatible Yes
Display LCD/LED
Dimensions 514 × 339 × 460 mm
Weight Approx. 23.7 kg
