Looking for a powerful and reliable power backup solution for your home, office, business, or professional setup? The Microtek UPS JM SW 4500+/36V is a high-capacity 4KVA / 3200W Jumbo UPS designed to deliver stable and efficient backup power. Available from Mahendra Power Zone, this Microtek UPS combines pure sine wave output, advanced DSP-based technology, intelligent battery charging, and multiple safety protections.

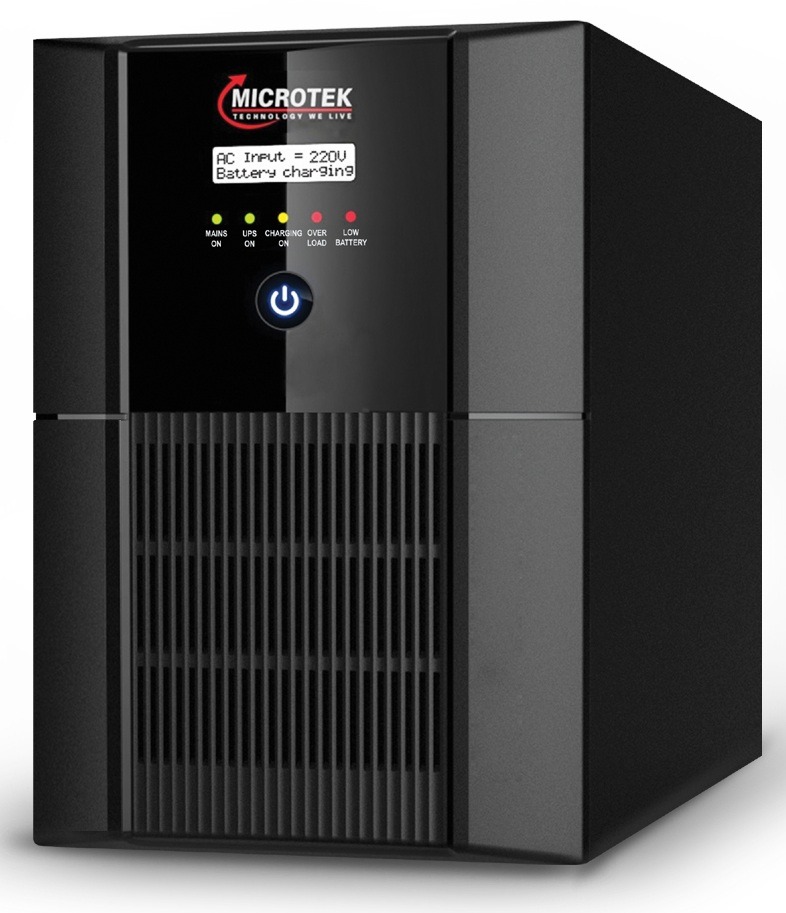

Microtek JM SW 4500+/36V – Powerful 4KVA UPS
The Microtek JM SW 4500+/36V offers a 4KVA capacity with 3200W working power and operates on a 36V battery system, making it suitable for applications requiring dependable high-capacity power backup. Its pure sine wave output in UPS mode helps provide clean and stable power for computers, office equipment, music systems, and other compatible electrical loads.
The UPS supports a wide standard input voltage range of 100V to 280V, helping it handle voltage fluctuations effectively. It also features automatic switching between mains and UPS operation for convenient, uninterrupted backup.
Key Features of Microtek UPS JM SW 4500+/36V
4KVA / 3200W high-capacity power rating
36V battery system
Pure sine wave output in UPS mode
DSP/high-end microcontroller-based PWM technology
ACEC technology for pure sine wave generation
Intelligent multi-stage battery charging
Maximum charging current of 20A ± 3A
Wide input voltage range of 100V–280V
Automatic mains-to-UPS and UPS-to-mains switching
LCD/LED display for load, battery and fault indications
Generator compatible
Peak Load Peak Output (PLPO) for high load handling
Wiring fault, overload and short-circuit protection
Low-battery and reverse-battery protection
Reverse-phase protection
Auto-reset feature
Integrated fan and heat-sink cooling system
Why Choose Microtek JM SW 4500+/36V?
Pure Sine Wave Performance
The JM SW 4500+/36V provides pure sine wave output during backup operation, making it a suitable choice for sensitive electronic and professional equipment that requires stable power.
Advanced DSP Technology
Microtek uses DSP/high-end microcontroller-based PWM technology with MOSFETs for intelligent control and efficient UPS operation.
Intelligent Battery Charging
Its boost-based PWM-controlled multi-stage battery management system is designed for controlled charging and improved battery performance.
Wide Input Voltage Range
With a standard input range of 100V–280V, the UPS is designed to operate across varying mains voltage conditions.
Multiple Safety Protections
The UPS incorporates protection against overload, short circuit, wiring faults, low battery, reverse phase and reverse battery conditions, helping protect the system and connected equipment.
Technical Specifications
Specification Details
Brand Microtek
Model JM SW 4500+/36V
Capacity 4KVA
Working Power 3200W
Battery Voltage 36V
Standard Input Voltage 100V–280V
Narrow Input Voltage 180V–260V
UPS Output Voltage 220V ± 10%
UPS Output Frequency 50Hz ± 0.5Hz
Backup Waveform Pure Sine Wave
Charging Current 20A ± 3A
Efficiency >80%
Technology DSP Based Smart Control
Switching Automatic
Display LCD/LED
Generator Compatible Yes
Operating Temperature 0°C–45°C
