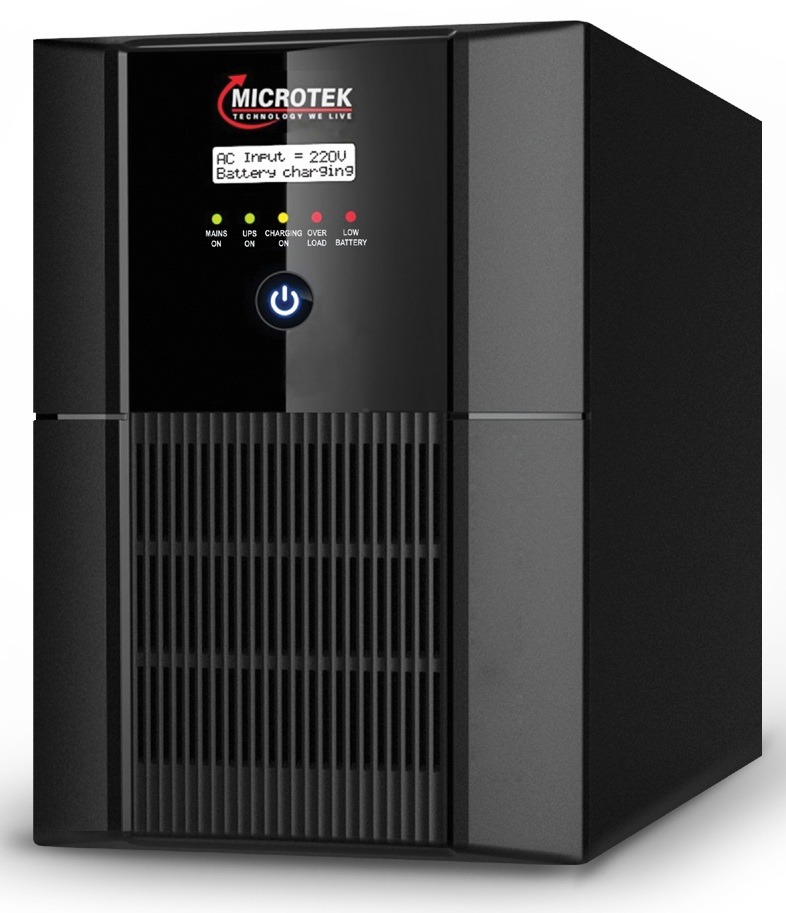

Looking for a powerful and reliable UPS for your home, office, or business? The Microtek UPS JM SW 5500+/48V is a high-capacity Jumbo Home UPS designed to provide dependable power backup for demanding applications. With a 5.2 kVA / 4160 W capacity, 48V battery configuration, and pure sine-wave output, this Microtek UPS is designed for safe and efficient backup performance.
At Mahendra Power Zone, you can get the Microtek JM SW 5500+/48V along with expert assistance in selecting the right power backup solution for your requirements.
Key Features of Microtek JM SW 5500+/48V
5.2 kVA / 4160 W rated capacity for high-power backup requirements
48V battery system using four batteries
Pure sine-wave output during UPS mode
DSP-based intelligent control technology
MOSFET-based PWM technology for efficient operation
Multi-stage battery charging technology
Battery selection mode for tubular, standard, and local batteries
Automatic mains-to-UPS and UPS-to-mains switching
Generator compatible
LCD/LED indications for load, battery status, and faults
Protection against overload, short circuit, low battery, wiring fault, reverse phase, and reverse battery
Integrated cooling with fan and heat sink
Auto-reset feature for convenient operation
Microtek JM SW 5500+/48V Specifications
Specification Details
Model Microtek JM SW 5500+/48V
Capacity 5.2 kVA / 4160 W
Battery Voltage 48V DC
Battery System 4-Battery System
Input Voltage 100V–280V
UPS Output 220V ±10%
UPS Frequency 50Hz ±0.5Hz
Backup Waveform Pure Sine Wave
Maximum Charging Current 20A + 3A
Technology DSP-Based Smart Control
Efficiency >80%
Generator Compatible Yes
Display LCD/LED
Operating Temperature 0°C–45°C
Cooling Integrated Fan & Heat Sink
