Looking for a powerful and reliable power backup solution for your home, office, commercial setup, or other high-load applications? The Microtek UPS JM SW 8000+/72V is a high-capacity Jumbo UPS designed to deliver efficient and stable backup power. Available from Mahendra Power Zone, this Microtek UPS combines Pure Sine Wave output, DSP-based technology, intelligent battery charging, and multiple safety protections.

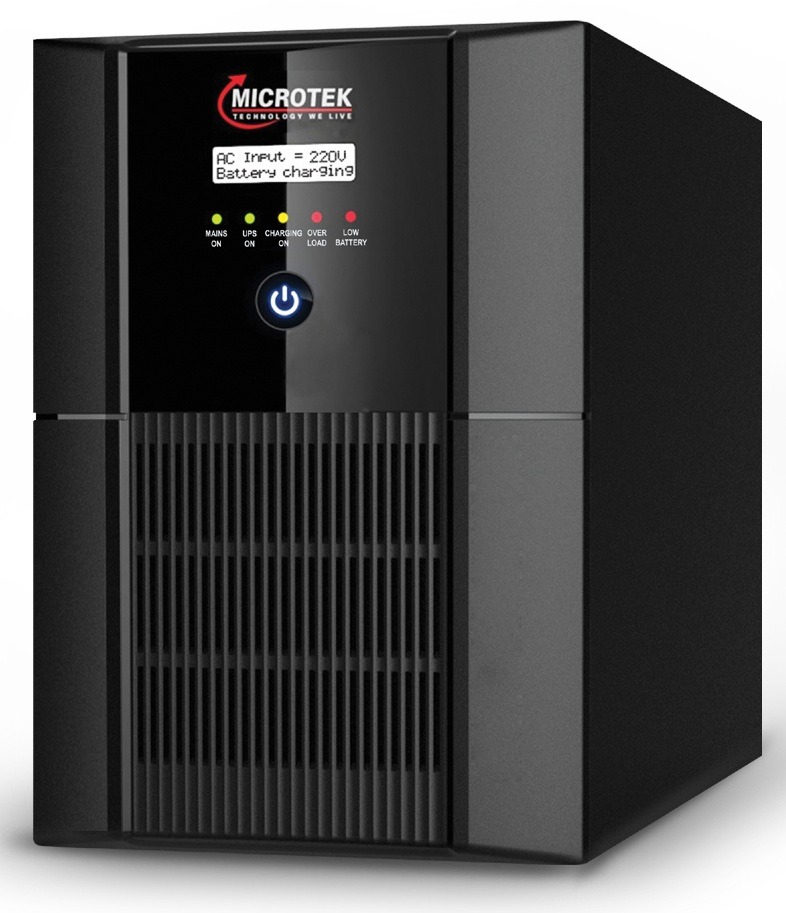

Microtek UPS JM SW 8000+/72V
The Microtek JM SW 8000+/72V offers a capacity of 7KVA / 5600W and operates on a 72V battery system. It is designed for applications that require dependable power backup and high load-handling capability.
Its Pure Sine Wave output helps provide clean and stable power to connected equipment, while its DSP/high-end microcontroller-based PWM technology helps improve overall performance and control.
Key Features of Microtek JM SW 8000+/72V
7KVA / 5600W capacity
72V DC battery system
Pure Sine Wave output in UPS mode
DSP/high-end microcontroller-based PWM technology
MOSFET-based technology
ACEC technology for Pure Sine Wave generation
Intelligent multi-stage battery charging
Maximum charging current of approximately 20A + 3A
Automatic mains-to-UPS and UPS-to-mains switching
Generator compatible
LCD/LED display for load, battery and fault indications
Peak Load Peak Output (PLPO) for high load handling
Auto-reset feature
Wiring fault, overload, short-circuit, low-battery and reverse-battery protection
Integrated cooling through fan and heat sink
Suitable for homes, offices and other demanding applications
Technical Specifications
Specification Details
Brand Microtek
Model JM SW 8000+/72V
Capacity 7KVA / 5600W
Battery Voltage 72V DC
Standard Input Voltage 100V–280V
Narrow Input Voltage 180V–260V
UPS Output Voltage 220V ±10%
UPS Output Frequency 50Hz ±0.5Hz
Backup Waveform Pure Sine Wave
Charging Current Max. 20A + 3A
Efficiency >80%
Technology DSP Based Smart Control
Switching Automatic
Display LCD/LED
Cooling Fan & Heat Sink
Auto Reset Yes
Generator Compatible Yes
Operating Temperature 0°C–45°C
Specifications should be confirmed with the manufacturer or authorized seller before purchase, as product specifications can change.
Why Choose Microtek JM SW 8000+/72V?
The Microtek UPS JM SW 8000+/72V is a suitable choice when standard home inverters do not provide sufficient capacity for your connected load. With a 7KVA rating and 5600W working power, it is designed for higher-capacity backup requirements.
The Pure Sine Wave output provides clean power, while the intelligent battery management system supports efficient charging and helps maintain battery performance. The UPS also incorporates several protection features to help safeguard the system and connected equipment.
